Heat Shrink < home
Heat Shrink Packaging machinery

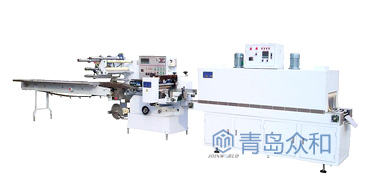

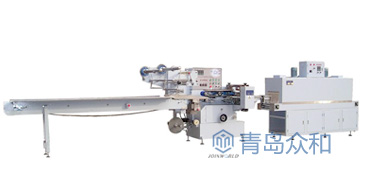

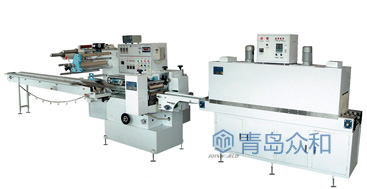

ZHA-450 ZHA-590 ZHA-690

ZHA-450 Features

(1) Using rolled film, automatically making bags, infilling, sealing and cutting, with a fast packaging speed
(2)The machine can be equipped with collection device of film waste margin, so that the longitudinal and transverse seal is shaped into three lines, Viz. H .
(3)Digital display function,able to show size of the film, speed of packing, output, temperature etc
(4)PLC controlling is adopted for reducing mechanical contact, making the system more stable, reliable, and maintenance easier.
(5)speed controlling via inverts, convenient and simple.
(6)This machine can be used with heat shrink stove, or can be also used separately.

ZHA-590 and ZHA-690 Features

(1) Suitable for singly or arbitrary packaging
(2)The efficient of assembly packaging is high
(3) Adopt Japanese electric equipment elements
(4) Cutting-resistance safety on-off device is set for preventing the damage of packed goods
(5) Can add the waste material recovery device for ensuring the packaging is mostly beautiful.
(6) It can be adjusted separately for the speed, temperature and length of the packaging; the operation is convenient and accuracy.
(7) Code drawer or code painter are attached, no need of manual work.
(8) With the control of motor braking, the reaction of the equipment is sensitive.
(9) Chain scraper conveyor is used, no movement or overturn happened while sending the material

Application

Fully automatic heat shrink packaging machine is suitable for outside heat shrinking packages of bowl packed instant noodle, bottle fruit milk, toothpaste, cosmetic ,hardware, electric elements, , and skin packages of soaps, group packages of drinks ,bowl instant noodle, mosquito Incense and daily-use cosmetics.

Specifications

Model No

ZHA-450

ZHA-590

ZHA-690

Wrapping machine

120-200packs/min

>90packs/min >90packs/min
Product length

55-300mm

100-390mm

100-390mm

Product width

20-180mm

50-200mm

50-200mm

Product height

5-60mm

20-140mm

20-140mm

Max. film width

450mm

590mm

690mm

Whole machine power

5.3KW

4.6KW

4.6KW

Machine weight

1150kg

1200kg

1200kg

Machine size (L)5000mm X
(W)1100 X(H)1600mm

(L)5000mm x
(W)1100mm x (H)1600mm

(L)5000mm x
(W)1100mm x (H)1600mm

ZHS-2000 Heat-Shrunk Stove

With the heating tube made of spirally stainless steel radiation place, so the heat radiation area is large, and the efficiencies are well.
Adopt Japanese electric equipment elements
With double temperature rooms and enough length of the stove, so the effect of expanding and contraction is most Ideal.
With accurate and small difference in temperature.
Adopt stepless gear, the speed can be adjusted

Specifications

Range of temperature (10℃-250℃)±3℃
Wrapping object size range (L)50-500mm(W)50-200mm(H)50-200mm
wrapping object size range Conventional 5-30m/min  Special 20-70m/min
Heating power 1×15 KW
Mian motor power 0.37KW
Fan motor power 2×0.37 KW
Machine weight 800kg
Machine size (L)2400mm×(W)600mm×(H)1600mm

Video

the scene of using heat-shrunk wrapping machine in Wahaha Group

the product quality of joinworld is recognized
